DIMENSIONS (LxWxH): 2246mmx1185mmx2.8mm (without junction box)

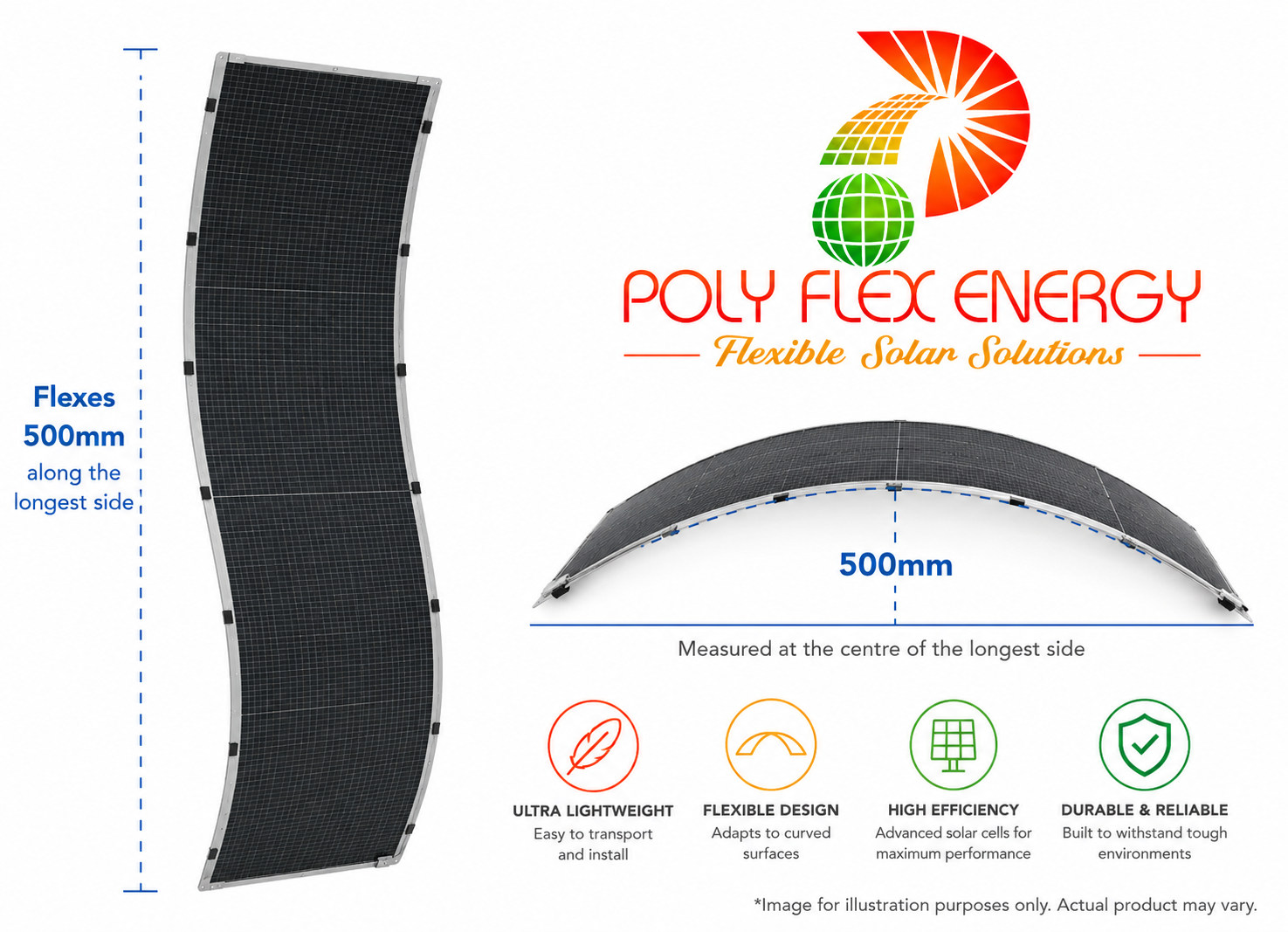

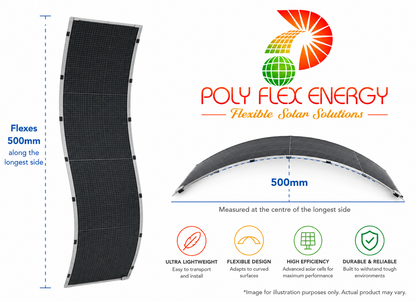

BENDING RADUIS: 500mm , 0.5m

WEIGHT: 9.5Kg

WEIGHT PER UNIT AREA: 3.57kg/m²

FRAME MATERIAL: Frameless

BACKSHEET TYPE: Backsheet (White)

ENCAPSULATIN MATERIAL: POE Polyolefin Elastomer

JUNCTION BOX IP RATING: IP68

CABLE SPECIFICATION: 4mm² , 460mm

-------------------------------------------------------------------: ----------------------------------------

HAIL RESISTANCE: 25 mm hailstones (about golf-ball size) Fired at around 23 m/s (~83 km/h)

TUV WIND TUNNEL RESISTANCE: Category 17 Typhoon

STATIC LOAD RESISTANCE: 5400 Pascals (+/- 550 kg/m²)

-------------------------------------------------------------------: ----------------------------------------

MODULE EFFICIENCY(nm): 19.50%

STC: Electrical Characteristics At Standard Test Conditions

STC: AM=1.5, Irradiance 1000W/m², Component Temperature 25°C

NMOT: Electrical Characteristics At Nominal Module

NMOT: Irradiance 800W/m² , Ambient Temperature 20°C , Wind Speed 1m/s

-------------------------------------------------------------------: ----------------------------------------

POWER PER UNIT AREA: 189.7~201.0W/m²

MAX POWER (P MAX): 520 Watts (STC)

MAX POWER (P MAX): 393 Watts (NMOT)

VOLTAGE AT MAX POWER: 40.24 Volts (STC)

VOLTAGE AT MAX POWER: 37.43 Volts (NMOT)

CURRENT AT MAX POWER (IMP): 12.94 Amps (STC)

CURRENT AT MAX POWER (IMP): 10.51 Amps (NMOT)

OPEN CIRCUIT VOLTAGE(Voc): 48.10 Volts (STC)

OPEN CIRCUIT VOLTAGE(Voc): 45.30 Volts (NMOT)

SHORT CIRCUIT CURRENT(Isc): 13.62 Amps (STC)

SHORT CIRCUIT CURRENT(Isc): 10.89Amps (NMOT)

POWER TOLERANCE: 0 -+ 5 Watts

MAX SYSTEM VOLTAGE: DC 1500V (IEC)

MAX SERIES FUSE RATING: 20A

-------------------------------------------------------------------: ----------------------------------------

OPERATING TEMPERATURE RANGE: -40°C ~ +85°C

OPERTATING TEMPERATURE (NMOT): 41±2°C

TEMPERATURE COEFFICIENT OF POWER: -0.36% / °C

TEMPERATURE COEFFICIENT OF VOLTAGE: -0.26% / °C

TEMPERATURE COEFFICIENT OF CURRENT: -0.04% / °C

-------------------------------------------------------------------: ----------------------------------------

CERTIFIED: TÜV

⚡ Performance & Reliability: PID Resistance Tested

⚡ Performance & Reliability: Adhesion Performance Tested

🔥 Fire Safety: Fire Rating Certified

🔥 Fire Safety: Roof Fire Safety Certified

✅ Manufacturing Standards: ISO Certified Manufacturing

✅ Manufacturing Standards: ISO Quality & Safety Certified

🌦 Weather Resistance: 30mm Hail Impact Tested

🌦 Weather Resistance: Ammonia Resistant Certified

🌦 Weather Resistance: Salt Mist Corrosion Resistant

🌦 Weather Resistance: Surface Gloss Tested

🌦 Weather Resistance: Dust Resistance Certified

🌦 Weather Resistance: Lightweight Wind Tested

🌦 Weather Resistance: Wind Tunnel Tested

🌍 International Compliance: RoHS Compliant(European Union)

🌍 International Compliance: JPEA Certified (Japan )

🌍 International Compliance: WEEE Registered (Germany)

🌍 International Compliance: RETIE Certified (Colombia)
